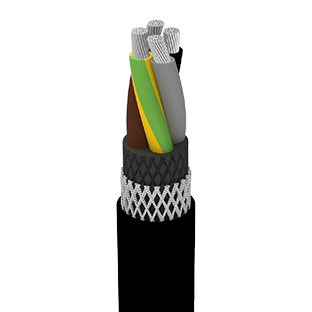

Kablo Yapısı
CONDUCTOR: Electrolytic annealed, class 5 stranded plain or tinned copper wires
SEPERATOR: A suitable tape may be applied over the conductor
INSULATION: 3GI3 type cross-linked elastomeric compound (VDE 0207 – Part 20
INNER SHEATH: GM1b type cross-linked elastomeric compound (VDE 0207 – Part 21)
REINFORCEMENT: Antitorsion textile braided embeded sheath
OUTER SHEATH: 5GM3 type cross-linked elastomeric compound (VDE 0207 – Part 21)
COLOR: Black
Çalışma Karakteristlikleri
RATED VOLTAGE: 600 / 1000 V (U0/U)
AC TEST VOLTAGE: 3,5 kV
OPERATING TEMPETATURE
IN FLEXING USE: -25°C to +80°C
IN FIXED USE: -40°C to +80°C
MAX. CONDUCTOR OPERATING TEMP.: 90°C
CONDUCTOR SHORT-CIRCUIT TEMP.: 250°C (Max. 5 sec)
MIN. INSTALLATION TEMP.: -15°C
MIN. BENDING RADIUS: VDE 0298-3 Tab.3
CURRENT CARRYING CAPACITIES: VDE 0298-4 Tab.11
Teknik Özellikleri
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) |
Min.Bending Radius (free movement) (mm) |
Max. Resistance of Conductors at 20°C (ohm / km) |
|---|---|---|---|---|
| 3×1,5 | 11,90 | 200 | 48 | 13,70 |
| 3×2,5 | 13,40 | 255 | 67 | 8,21 |
| 3×4 | 16,10 | 378 | 81 | 5,09 |
| 3×6 | 17,20 | 455 | 86 | 3,39 |
| 3×10 | 21,30 | 713 | 107 | 1,95 |
| 3×16 | 23,40 | 930 | 117 | 1,24 |
| 3×25 | 29,30 | 1426 | 147 | 0,795 |
| 3×35 | 32,70 | 1868 | 164 | 0,565 |
| 3×50 | 38,20 | 2573 | 191 | 0,393 |
| 3×70 | 42,30 | 3374 | 212 | 0,277 |
| 3×95 | 48,40 | 4410 | 242 | 0,206 |
| 3×120 | 52,10 | 5321 | 261 | 0,164 |
| 3×150 | 55,90 | 6354 | 280 | 0,132 |
| 3×185 | 62,70 | 7836 | 314 | 0,108 |
| 3×240 | 71,60 | 10396 | 358 | 0,0817 |
| 3×16+10 | 25,70 | 1163 | 129 | 1,24 |
| 3×25+16 | 31,60 | 1736 | 158 | 0,795 |
| 3×35+16 | 35,10 | 2219 | 176 | 0,554 |
| 3×50+25 | 41,10 | 3073 | 206 | 0,386 |
| 3×70+35 | 45,60 | 4035 | 228 | 0,272 |
| 3×95+50 | 50,40 | 5077 | 252 | 0,206 |
| 3×120+70 | 56,30 | 6471 | 282 | 0,161 |
| 3×150+70 | 60,50 | 7628 | 303 | 0,129 |
| 3×185+95 | 66,00 | 9155 | 330 | 0,106 |
| 3×240+120 | 77,30 | 12466 | 387 | 0,0801 |
| 3×35+3×25/3 | 35,90 | 2417 | 180 | 0,554 |
| 3×50+3×25/3 | 38,40 | 2862 | 192 | 0,386 |
| 3×70+3×35/3 | 43,70 | 3859 | 219 | 0,272 |
| 3×95+3×50/3 | 48,30 | 4860 | 242 | 0,206 |
| 3×120+3×70/3 | 53,90 | 6171 | 270 | 0,161 |
| 3×150+3×70/3 | 56,30 | 7018 | 282 | 0,129 |
| 3×185+3×95/3 | 64,90 | 8958 | 325 | 0,106 |
| 3×240+3×120/3 | 71,10 | 11343 | 356 | 0,0801 |
| 4×1,5 | 12,70 | 225 | 64 | 13,30 |
| 4×2,5 | 15,60 | 344 | 78 | 7,98 |
| 4×4 | 17,30 | 448 | 87 | 4,95 |
| 4×6 | 18,50 | 545 | 93 | 3,30 |
| 4×10 | 22,00 | 810 | 115 | 1,91 |
| 4×16 | 26,40 | 1202 | 132 | 1,21 |
| 4×25 | 33,30 | 1860 | 167 | 0,78 |
| 4×35 | 35,50 | 2298 | 178 | 0,554 |
| 4×50 | 41,50 | 3171 | 208 | 0,386 |
| 4×70 | 46,10 | 4195 | 231 | 0,272 |
| 4×95 | 52,70 | 5478 | 264 | 0,206 |
| 4×120 | 58,60 | 6883 | 293 | 0,161 |
| 4×150 | 62,90 | 8231 | 315 | 0,129 |
| 4×185 | 70,30 | 10104 | 352 | 0,106 |
| 4×240 | 80,10 | 13381 | 401 | 0,0801 |
| 5×1,5 | 13,60 | 261 | 68 | 13,30 |
| 5×2,5 | 16,70 | 400 | 84 | 7,98 |
| 5×4 | 18,60 | 525 | 93 | 4,95 |
| 5×6 | 20,80 | 683 | 104 | 3,30 |
| 5×10 | 24,80 | 1015 | 124 | 1,91 |
| 5×16 | 28,50 | 1424 | 143 | 1,21 |
| 5×25 | 36,10 | 2212 | 181 | 0,78 |
| 5×35 | 40,00 | 2881 | 200 | 0,554 |
| 5×50 | 45,10 | 3795 | 226 | 0,386 |
| 5×70 | 52,10 | 5270 | 261 | 0,272 |
| 5×95 | 58,40 | 6789 | 292 | 0,206 |
| 7×1,5 | 16,70 | 397 | 84 | 13,30 |
| 7×2,5 | 19,00 | 537 | 95 | 7,98 |
| 7×4 | 22,10 | 760 | 111 | 4,95 |
| 7×6 | 23,80 | 935 | 119 | 3,30 |
| 7×10 | 29,80 | 1493 | 149 | 1,91 |
| 7×16 | 34,50 | 2116 | 173 | 1.21 |
| 7×25 | 43,50 | 3271 | 218 | 0,78 |
| 7×35 | 46,50 | 4069 | 233 | 0,554 |
| 12×1,5 | 20,10 | 570 | 101 | 13,30 |
| 12×2,5 | 23,10 | 782 | 116 | 7,98 |
| 12×4 | 27,00 | 1117 | 135 | 4,95 |
| 18×1,5 | 22,80 | 757 | 114 | 13,30 |
| 18×2,5 | 27,20 | 1116 | 136 | 7,98 |
| 18×4 | 32,10 | 1596 | 161 | 4,95 |
| 24×1,5 | 25,90 | 941 | 130 | 13,30 |
| 24×2,5 | 31,00 | 1396 | 155 | 7,98 |
| 30×2,5 | 35,7 | 1921 | 179 | 7,98 |
| 36×1,5 | 30,00 | 1328 | 150 | 13,30 |
| 36×2,5 | 36,20 | 2004 | 181 | 7,98 |
