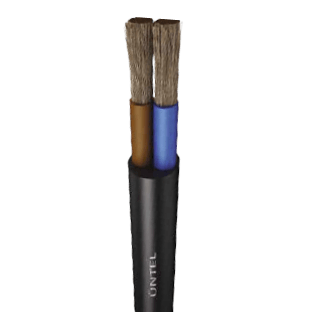

Kablo Yapısı
CONDUCTOR : Strand of annealed tinned or bare copper wires According to IEC C 60228 – Class 2 or Class 5 AWG types to ASTM B8
– Class B or Class C. If requested ASTM B172 or B173 flexible versions also available
INSULATION : XLPE – Cross linked polyethylene material
OUTER JACKET : PVC or PE or HF(halogen free) or other suitable jacketing material according to NEMA WC70 / IECA S-96-658.
Çalışma Karakteristlikleri
CONDUCTOR OPERATING TEMPERATURE : -25ºC / +90ºC
RATED VOLTAGE : 600 V
TEST VOLTAGE : 2 kV
BENDING RADIUS : 5 x Outer Diameter
STANDARD OF TEST : ICEA S-96-658 / NEMA WC70 FAA Specifrcation for L824-AC No. 150/5345-7F
Teknik Özellikleri
| Construction (*) | Cross Section |
Overall Diameter mm |
Approx Weight kg/km |
Max. Resistance of Conductors at 20 ºC (ohm/km) |
Current Carrying Capacity at 45 ºC (A) |
|---|---|---|---|---|---|
| BCL2 / XLPE / PE | 1X2,5 mm² | 5,3 | 38 | 7,41 | 30 |
| BCL2 / XLPE / PE | 1X4 mm² | 5,9 | 56 | 4,61 | 40 |
| BCL2 / XLPE / PE | 1X6 mm² | 6,4 | 76 | 3,08 | 52 |
| BCL2 / XLPE / PE | 1X10 mm² | 8,4 | 125 | 1,83 | 72 |
| BCL2 / XLPE / PE | 2X2,5 mm² | 9,7 | 107 | 7,41 | 26 |
| BCL2 / XLPE / PE | 2X4 mm² | 10,2 | 140 | 4,61 | 34 |
| BCL2 / XLPE / PE | 2X6 mm² | 11,6 | 192 | 3,08 | 44 |
| BCL2 / XLPE / PE | 2X10 mm² | 15,8 | 334 | 1,83 | 61 |
| BCL5 / XLPE / PE | 1X2,5 mm² | 5,3 | 36 | 7,98 | 30 |
| BCL5 / XLPE / PE | 1X4 mm² | 5,9 | 52 | 4,95 | 40 |
| BCL5 / XLPE / PE | 1X6 mm² | 6,4 | 70 | 3,30 | 52 |
| BCL5 / XLPE / PE | 1X10 mm² | 8,4 | 119 | 1,91 | 72 |
| BCL5 / XLPE / PE | 2X2,5 mm² | 9,5 | 102 | 7,98 | 26 |
| BCL5 / XLPE / PE | 2X4 mm² | 10,0 | 135 | 4,95 | 34 |
| BCL5 / XLPE / PE | 2X6 mm² | 9,8 | 179 | 3,30 | 44 |
| BCL5 / XLPE / PE | 2X10 mm² | 15,6 | 321 | 1,91 | 61 |
| BCL2 / XLPE / PVC | 1X2,5 mm² | 5,1 | 43 | 7,41 | 30 |
| BCL2 / XLPE / PVC | 1X4 mm² | 5,7 | 62 | 4,61 | 40 |
| BCL2 / XLPE / PVC | 1X6 mm² | 6,3 | 82 | 3,08 | 52 |
| BCL2 / XLPE / PVC | 1X10 mm² | 8,2 | 141 | 1,83 | 72 |
| BCL2 / XLPE / PVC | 2X2,5 mm² | 9,5 | 130 | 7,41 | 26 |
| BCL2 / XLPE / PVC | 2X4 mm² | 10,2 | 174 | 4,61 | 34 |
| BCL2 / XLPE / PVC | 2X6 mm² | 12,5 | 230 | 3,08 | 44 |
| BCL2 / XLPE / PVC | 2X10 mm² | 15,8 | 403 | 1,83 | 61 |
| BCL5 / XLPE / PVC | 1X2,5 mm² | 5,0 | 41 | 7,98 | 30 |
| BCL5 / XLPE / PVC | 1X4 mm² | 5,7 | 58 | 4,95 | 40 |
| BCL5 / XLPE / PVC | 1X6 mm² | 6,1 | 76 | 3,30 | 52 |
| BCL5 / XLPE / PVC | 1X10 mm² | 7,8 | 125 | 1,91 | 72 |
| BCL5 / XLPE / PVC | 2X2,5 mm² | 9,3 | 124 | 7,98 | 26 |
| BCL5 / XLPE / PVC | 2X4 mm² | 10,3 | 164 | 4,95 | 34 |
| BCL5 / XLPE / PVC | 2X6 mm² | 11,4 | 215 | 3,30 | 44 |
| BCL5 / XLPE / PVC | 2X10 mm² | 15,8 | 392 | 1,91 | 61 |
| BAWGB / XLPE / PE | 1X12 AWG | 5,7 | 49 | 5,44 | 36 |
| BAWGB / XLPE / PE | 1X10 AWG | 6,3 | 70 | 3,41 | 48 |
| BAWGB / XLPE / PE | 1X8 AWG | 7,8 | 111 | 2,14 | 64 |
| BAWGB / XLPE / PE | 1X6 AWG | 8,7 | 159 | 1,35 | 86 |
| BAWGB / XLPE / PE | 2X12 AWG | 10,2 | 131 | 5,44 | 30 |
| BAWGB / XLPE / PE | 2X10 AWG | 11,4 | 180 | 3,41 | 40 |
| BAWGB / XLPE / PE | 2X8 AWG | 15,4 | 369 | 2,14 | 54 |
| BAWGB / XLPE / PE | 2X6 AWG | 17,3 | 425 | 1,35 | 72 |
| BAWGC / XLPE / PE | 1X12 AWG | 5,4 | 48 | 5,44 | 36 |
| BAWGC / XLPE / PE | 1X10 AWG | 6,2 | 70 | 3,41 | 48 |
| BAWGC / XLPE / PE | 1X8 AWG | 7,7 | 110 | 2,14 | 64 |
| BAWGC / XLPE / PE | 1X6 AWG | 8,5 | 160 | 1,35 | 86 |
| BAWGC / XLPE / PE | 2X12 AWG | 10,3 | 130 | 5,44 | 30 |
| BAWGC / XLPE / PE | 2X10 AWG | 11,5 | 180 | 3,41 | 40 |
| BAWGC / XLPE / PE | 2X8 AWG | 15,3 | 305 | 2,14 | 54 |
| BAWGC / XLPE / PE | 2X6 AWG | 17,0 | 424 | 1,35 | 72 |
| BAWGB / XLPE / PVC | 1X12 AWG | 5,6 | 56 | 5,44 | 36 |
| BAWGB / XLPE / PVC | 1X10 AWG | 6,4 | 78 | 3,41 | 48 |
| BAWGB / XLPE / PVC | 1X8 AWG | 7,6 | 118 | 2,14 | 64 |
| BAWGB / XLPE / PVC | 1X6 AWG | 8,8 | 170 | 1,35 | 86 |
| BAWGB / XLPE / PVC | 2X12 AWG | 10,2 | 159 | 5,44 | 30 |
| BAWGB / XLPE / PVC | 2X10 AWG | 11,5 | 215 | 3,41 | 40 |
| BAWGB / XLPE / PVC | 2X8 AWG | 15,1 | 367 | 2,14 | 54 |
| BAWGB / XLPE / PVC | 2X6 AWG | 17,4 | 508 | 1,35 | 72 |
| BAWGC / XLPE / PVC | 1X12 AWG | 5,5 | 54 | 5,44 | 36 |
| BAWGC / XLPE / PVC | 1X10 AWG | 6,2 | 77 | 3,41 | 48 |
| BAWGC / XLPE / PVC | 1X8 AWG | 7,6 | 120 | 2,14 | 64 |
| BAWGC / XLPE / PVC | 1X6 AWG | 8,7 | 172 | 1,35 | 86 |
| BAWGC / XLPE / PVC | 2X12 AWG | 10,2 | 158 | 5,44 | 30 |
| BAWGC / XLPE / PVC | 2X10 AWG | 11,3 | 215 | 3,41 | 40 |
| BAWGC / XLPE / PVC | 2X8 AWG | 15,1 | 365 | 2,14 | 54 |
| BAWGC / XLPE / PVC | 2X6 AWG | 17,2 | 508 | 1,35 | 72 |
| TCL2 / XLPE / PE | 1X2,5 mm² | 5,2 | 40 | 7,56 | 30 |
| TCL2 / XLPE / PE | 1X4 mm² | 5,7 | 56 | 4,70 | 40 |
| TCL2 / XLPE / PE | 1X6 mm² | 6,4 | 77 | 3,11 | 52 |
| TCL2 / XLPE / PE | 1X10 mm² | 8,1 | 125 | 1,84 | 72 |
| TCL2 / XLPE / PE | 2X2,5 mm² | 9,6 | 106 | 7,56 | 26 |
| TCL2 / XLPE / PE | 2X4 mm² | 10,7 | 145 | 4,70 | 34 |
| TCL2 / XLPE / PE | 2X6 mm² | 11,6 | 192 | 3,11 | 44 |
| TCL2 / XLPE / PE | 2X10 mm² | 16,0 | 340 | 1,84 | 61 |
| TCL5 / XLPE / PE | 1X2,5 mm² | 5,2 | 38 | 8,21 | 30 |
| TCL5 / XLPE / PE | 1X4 mm² | 5,7 | 52 | 5,09 | 40 |
| TCL5 / XLPE / PE | 1X6 mm² | 6,3 | 72 | 3,39 | 52 |
| TCL5 / XLPE / PE | 1X10 mm² | 8,0 | 120 | 1,95 | 72 |
| TCL5 / XLPE / PE | 2X2,5 mm² | 9,4 | 102 | 8,21 | 26 |
| TCL5 / XLPE / PE | 2X4 mm² | 10,2 | 132 | 5,09 | 34 |
| TCL5 / XLPE / PE | 2X6 mm² | 11,6 | 181 | 3,39 | 44 |
| TCL5 / XLPE / PE | 2X10 mm² | 15,9 | 328 | 1,95 | 61 |
| TCL2 / XLPE / PVC | 1X2,5 mm² | 5,3 | 45 | 7,56 | 30 |
| TCL2 / XLPE / PVC | 1X4 mm² | 5,8 | 62 | 4,70 | 40 |
| TCL2 / XLPE / PVC | 1X6 mm² | 6,4 | 85 | 3,11 | 52 |
| TCL2 / XLPE / PVC | 1X10 mm² | 8,1 | 135 | 1,84 | 72 |
| TCL2 / XLPE / PVC | 2X2,5 mm² | 9,8 | 135 | 7,56 | 26 |
| TCL2 / XLPE / PVC | 2X4 mm² | 10,8 | 180 | 4,70 | 34 |
| TCL2 / XLPE / PVC | 2X6 mm² | 11,7 | 230 | 3,11 | 44 |
| TCL2 / XLPE / PVC | 2X10 mm² | 16,1 | 410 | 1,84 | 61 |
| TCL5 / XLPE / PVC | 1X2,5 mm² | 5,1 | 43 | 8,21 | 30 |
| TCL5 / XLPE / PVC | 1X4 mm² | 5,7 | 60 | 5,09 | 40 |
| TCL5 / XLPE / PVC | 1X6 mm² | 6,3 | 78 | 3,39 | 52 |
| TCL5 / XLPE / PVC | 1X10 mm² | 7,7 | 123 | 1,95 | 72 |
| TCL5 / XLPE / PVC | 2X2,5 mm² | 9,6 | 128 | 8,21 | 26 |
| TCL5 / XLPE / PVC | 2X4 mm² | 10,4 | 167 | 5,09 | 34 |
| TCL5 / XLPE / PVC | 2X6 mm² | 11,3 | 215 | 3,39 | 44 |
| TCL5 / XLPE / PVC | 2X10 mm² | 15,6 | 390 | 1,95 | 61 |
| TAWGB / XLPE / PE | 1X12 AWG | 5,6 | 50 | 5,64 | 36 |
| TAWGB / XLPE / PE | 1X10 AWG | 6,0 | 67 | 3,54 | 48 |
| TAWGB / XLPE / PE | 1X8 AWG | 7,7 | 110 | 2,22 | 64 |
| TAWGB / XLPE / PE | 1X6 AWG | 8,8 | 163 | 1,40 | 86 |
| TAWGB / XLPE / PE | 2X12 AWG | 10,3 | 130 | 5,64 | 30 |
| TAWGB / XLPE / PE | 2X10 AWG | 11,5 | 178 | 3,54 | 40 |
| TAWGB / XLPE / PE | 2X8 AWG | 15,3 | 370 | 2,22 | 54 |
| TAWGB / XLPE / PE | 2X6 AWG | 17,1 | 423 | 1,40 | 72 |
| TAWGC / XLPE / PE | 1X12 AWG | 5,5 | 49 | 5,73 | 36 |
| TAWGC / XLPE / PE | 1X10 AWG | 6,1 | 70 | 3,54 | 48 |
| TAWGC / XLPE / PE | 1X8 AWG | 7,6 | 108 | 2,22 | 64 |
| TAWGC / XLPE / PE | 1X6 AWG | 8,3 | 156 | 1,40 | 86 |
| TAWGC / XLPE / PE | 2X12 AWG | 10,2 | 130 | 5,73 | 30 |
| TAWGC / XLPE / PE | 2X10 AWG | 11,4 | 1480 | 3,54 | 40 |
| TAWGC / XLPE / PE | 2X8 AWG | 15,0 | 300 | 2,22 | 54 |
| TAWGC / XLPE / PE | 2X6 AWG | 16,8 | 423 | 1,40 | 72 |
| TAWGB / XLPE / PVC | 1X12 AWG | 5,6 | 55 | 5,64 | 36 |
| TAWGB / XLPE / PVC | 1X10 AWG | 6,4 | 79 | 3,54 | 48 |
| TAWGB / XLPE / PVC | 1X8 AWG | 7,7 | 120 | 2,22 | 64 |
| TAWGB / XLPE / PVC | 1X6 AWG | 8,8 | 170 | 1,40 | 86 |
| TAWGB / XLPE / PVC | 2X12 AWG | 10,2 | 160 | 5,64 | 30 |
| TAWGB / XLPE / PVC | 2X10 AWG | 11,3 | 212 | 3,54 | 40 |
| TAWGB / XLPE / PVC | 2X8 AWG | 15,4 | 372 | 2,22 | 54 |
| TAWGB / XLPE / PVC | 2X6 AWG | 17,1 | 505 | 1,40 | 72 |
| TAWGC / XLPE / PVC | 1X12 AWG | 5,4 | 54 | 5,73 | 36 |
| TAWGC / XLPE / PVC | 1X10 AWG | 6,1 | 78 | 3,54 | 48 |
| TAWGC / XLPE / PVC | 1X8 AWG | 7,7 | 120 | 2,22 | 64 |
| TAWGC / XLPE / PVC | 1X6 AWG | 8,5 | 170 | 1,40 | 86 |
| TAWGC / XLPE / PVC | 2X12 AWG | 10,4 | 160 | 5,73 | 30 |
| TAWGC / XLPE / PVC | 2X10 AWG | 11,5 | 215 | 3,54 | 40 |
| TAWGC / XLPE / PVC | 2X8 AWG | 145,4 | 370 | 2,22 | 54 |
| TAWGC / XLPE / PVC | 2X6 AWG | 17,0 | 505 | 1,40 | 72 |
