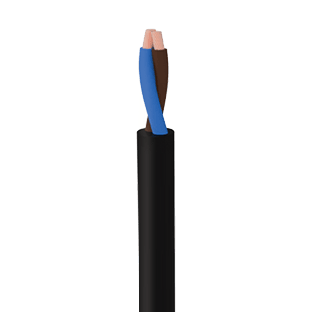

Kablo Yapısı
CONDUCTOR : Strand of annealed tinned or bare copper wires According to IEC C 60228 – Class 2 or Class 5 AWG types to ASTM B8
– Class B or Class C. If requested ASTM B172 or B173 flexible versions also available
INSULATION : EPR – Ethylene propylene rubber material
OUTER JACKET : CPE-XL-HD or Cr – HD or NEoprene or other suitable jacketing material according to NEMA WC70 / IECA S-96-658.
Çalışma Karakteristlikleri
CONDUCTOR OPERATING TEMPERATURE : -25ºC / +90ºC
RATED VOLTAGE : 600 V
TEST VOLTAGE : 2 kV
BENDING RADIUS : 5 x Outer Diameter
STANDARD OF TEST : ICEA S – 96 – 658 / NEMA WC 70
Teknik Özellikleri
| Construction (*) | Cross Section |
Overall Diameter mm |
Approx Weight kg/km |
Max. Resistance of Conductors at 20 ºC (ohm/km) |
Current Carrying Capacity at 45 ºC (A) |
|---|---|---|---|---|---|
| BCL2 / EPR / CPE-XL | 1X2,5 mm² | 5,2 | 50 | 7,41 | 30 |
| BCL2 / EPR / CPE-XL | 1X4 mm² | 5,9 | 70 | 4,61 | 40 |
| BCL2 / EPR / CPE-XL | 1X6 mm² | 6,4 | 92 | 3,08 | 52 |
| BCL2 / EPR / CPE-XL | 1X10 mm² | 8,2 | 150 | 1,83 | 72 |
| BCL2 / EPR / CPE-XL | 2X2,5 mm² | 8,8 | 150 | 7,41 | 26 |
| BCL2 / EPR / CPE-XL | 2X4 mm² | 10,8 | 198 | 4,61 | 34 |
| BCL2 / EPR / CPE-XL | 2X6 mm² | 12,0 | 265 | 3,08 | 44 |
| BCL2 / EPR / CPE-XL | 2X10 mm² | 16,2 | 452 | 1,83 | 61 |
| BCL5 / EPR / CPE-XL | 1X2,5 mm² | 5,2 | 49 | 7,98 | 30 |
| BCL5 / EPR / CPE-XL | 1X4 mm² | 5,7 | 68 | 4,95 | 40 |
| BCL5 / EPR / CPE-XL | 1X6 mm² | 6,2 | 85 | 3,30 | 52 |
| BCL5 / EPR / CPE-XL | 1X10 mm² | 7,7 | 135 | 1,91 | 72 |
| BCL5 / EPR / CPE-XL | 2X2,5 mm² | 8,7 | 135 | 7,98 | 26 |
| BCL5 / EPR / CPE-XL | 2X4 mm² | 10,2 | 192 | 4,95 | 34 |
| BCL5 / EPR / CPE-XL | 2X6 mm² | 11,7 | 252 | 3,30 | 44 |
| BCL5 / EPR / CPE-XL | 2X10 mm² | 15,5 | 435 | 1,91 | 61 |
| BAWGB / EPR / CPE-XL | 1X12 AWG | 5,5 | 60 | 5,44 | 36 |
| BAWGB / EPR / CPE-XL | 1X10 AWG | 6,4 | 85 | 3,41 | 48 |
| BAWGB / EPR / CPE-XL | 1X8 AWG | 7,9 | 138 | 2,14 | 64 |
| BAWGB / EPR / CPE-XL | 1X6 AWG | 8,7 | 185 | 1,35 | 86 |
| BAWGB / EPR / CPE-XL | 2X12 AWG | 10,4 | 179 | 5,44 | 30 |
| BAWGB / EPR / CPE-XL | 2X10 AWG | 11,7 | 342 | 3,41 | 40 |
| BAWGB / EPR / CPE-XL | 2X8 AWG | 15,5 | 410 | 2,14 | 54 |
| BAWGB / EPR / CPE-XL | 2X6 AWG | 17,5 | 547 | 1,35 | 72 |
| BAWGC / EPR / CPE-XL | 1X12 AWG | 5,5 | 60 | 5,44 | 36 |
| BAWGC / EPR / CPE-XL | 1X10 AWG | 6,2 | 83 | 3,41 | 48 |
| BAWGC / EPR / CPE-XL | 1X8 AWG | 8,1 | 142 | 2,14 | 64 |
| BAWGC / EPR / CPE-XL | 1X6 AWG | 8,7 | 186 | 1,35 | 86 |
| BAWGC / EPR / CPE-XL | 2X12 AWG | 10,2 | 177 | 5,44 | 30 |
| BAWGC / EPR / CPE-XL | 2X10 AWG | 11,8 | 345 | 3,41 | 40 |
| BAWGC / EPR / CPE-XL | 2X8 AWG | 15,5 | 411 | 2,14 | 54 |
| BAWGC / EPR / CPE-XL | 2X6 AWG | 17,6 | 550 | 1,35 | 72 |
| TCL2 / EPR / CPE-XL | 1X2,5 mm² | 5,3 | 52 | 7,56 | 30 |
| TCL2 / EPR / CPE-XL | 1X4 mm² | 5,8 | 75 | 4,70 | 40 |
| TCL2 / EPR / CPE-XL | 1X6 mm² | 6,3 | 90 | 3,11 | 52 |
| TCL2 / EPR / CPE-XL | 1X10 mm² | 8,2 | 154 | 1,84 | 72 |
| TCL2 / EPR / CPE-XL | 2X2,5 mm² | 9,6 | 158 | 7,56 | 26 |
| TCL2 / EPR / CPE-XL | 2X4 mm² | 10,9 | 208 | 4,70 | 34 |
| TCL2 / EPR / CPE-XL | 2X6 mm² | 11,9 | 263 | 3,11 | 44 |
| TCL2 / EPR / CPE-XL | 2X10 mm² | 16,1 | 453 | 1,84 | 61 |
| TCL5 / EPR / CPE-XL | 1X2,5 mm² | 5,1 | 52 | 8,21 | 30 |
| TCL5 / EPR / CPE-XL | 1X4 mm² | 5,7 | 70 | 5,09 | 40 |
| TCL5 / EPR / CPE-XL | 1X6 mm² | 6,3 | 94 | 3,39 | 52 |
| TCL5 / EPR / CPE-XL | 1X10 mm² | 8,1 | 147 | 1,95 | 72 |
| TCL5 / EPR / CPE-XL | 2X2,5 mm² | 9,4 | 145 | 8,21 | 26 |
| TCL5 / EPR / CPE-XL | 2X4 mm² | 10,5 | 190 | 5,09 | 34 |
| TCL5 / EPR / CPE-XL | 2X6 mm² | 11,5 | 243 | 3,39 | 44 |
| TCL5 / EPR / CPE-XL | 2X10 mm² | 15,7 | 432 | 1,95 | 61 |
| TAWGB / EPR / CPE-XL | 1X12 AWG | 5,6 | 65 | 5,64 | 36 |
| TAWGB / EPR / CPE-XL | 1X10 AWG | 6,2 | 91 | 3,54 | 48 |
| TAWGB / EPR / CPE-XL | 1X8 AWG | 7,8 | 142 | 2,22 | 64 |
| TAWGB / EPR / CPE-XL | 1X6 AWG | 8,8 | 196 | 1,40 | 86 |
| TAWGB / EPR / CPE-XL | 2X12 AWG | 10,5 | 186 | 5,64 | 30 |
| TAWGB / EPR / CPE-XL | 2X10 AWG | 11,6 | 243 | 3,54 | 40 |
| TAWGB / EPR / CPE-XL | 2X8 AWG | 15,6 | 420 | 2,22 | 54 |
| TAWGB / EPR / CPE-XL | 2X6 AWG | 17,5 | 548 | 1,40 | 72 |
| TAWGC / EPR / CPE-XL | 1X12 AWG | 5,5 | 68 | 5,73 | 36 |
| TAWGC / EPR / CPE-XL | 1X10 AWG | 6,2 | 96 | 3,54 | 48 |
| TAWGC / EPR / CPE-XL | 1X8 AWG | 7,8 | 142 | 2,22 | 64 |
| TAWGC / EPR / CPE-XL | 1X6 AWG | 8,8 | 196 | 1,40 | 86 |
| TAWGC / EPR / CPE-XL | 2X12 AWG | 10,4 | 187 | 5,73 | 30 |
| TAWGC / EPR / CPE-XL | 2X10 AWG | 11,6 | 248 | 3,54 | 40 |
| TAWGC / EPR / CPE-XL | 2X8 AWG | 15,3 | 395 | 2,22 | 64 |
| TAWGC / EPR / CPE-XL | 2X6 AWG | 17,3 | 555 | 1,40 | 72 |
